DIN6899B Wire Rope Thimbles Metal Thimble

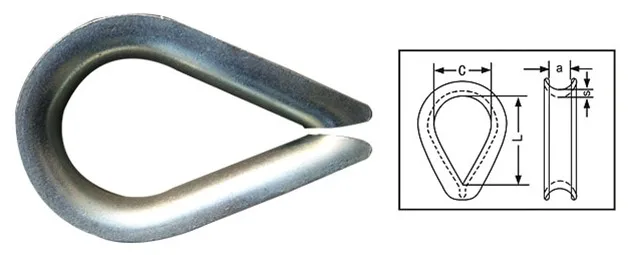

1.DIN6899B Wire Rope Thimbles Metal Thimble Data
Rope Dia. | Dimensions(in) | Weight Each kg/pc | |||
A | L | C | S | ||
2.5 | 3 | 19 | 12 | 1.6 | 0.005 |
3.5 | 4 | 21 | 13 | 1.6 | 0.008 |
4 | 5 | 23 | 14 | 1.9 | 0.010 |
5 | 6 | 25 | 16 | 2.4 | 0.016 |
6 | 7 | 28 | 18 | 2.4 | 0.019 |
7 | 8 | 32 | 20 | 2.8 | 0.030 |
9 | 10 | 38 | 24 | 3.1 | 0.047 |
10 | 12 | 45 | 28 | 3.3 | 0.068 |
11 | 13 | 48 | 30 | 3.3 | 0.080 |
12 | 14 | 51 | 32 | 3.7 | 0.100 |
15 | 16 | 58 | 36 | 3.8 | 0.145 |
16 | 17 | 61 | 38 | 4.7 | 0.180 |
17 | 18 | 64 | 40 | 4.7 | 0.200 |
18 | 20 | 72 | 45 | 5.7 | 0.290 |
20 | 22 | 80 | 50 | 5.7 | 0.320 |
22 | 24 | 90 | 56 | 6.5 | 0.470 |
24 | 26 | 99 | 62 | 6.8 | 0.590 |
26 | 28 | 112 | 70 | 8 | 0.800 |
28 | 30 | 120 | 75 | 8 | 1.100 |
30 | 32 | 128 | 80 | 8 | 1.230 |
32 | 34 | 152 | 92 | 8.5 | 1.560 |
34 | 36 | 160 | 100 | 8.5 | 1.760 |
36 | 38 | 176 | 110 | 8.5 | 1.920 |

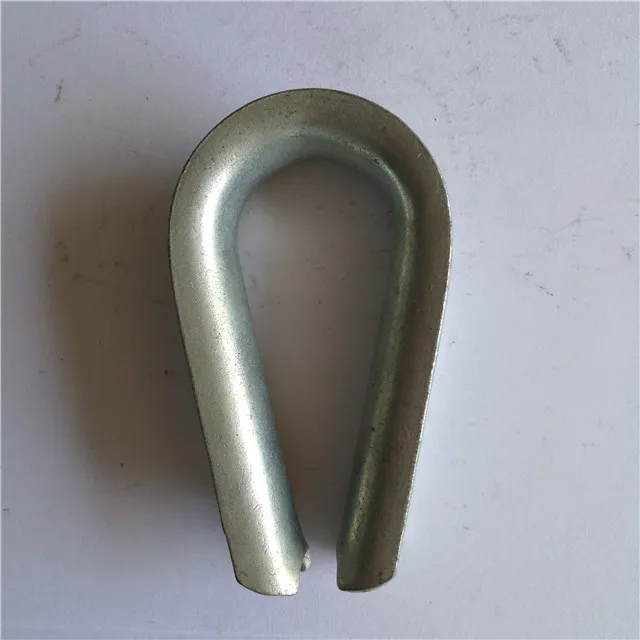

2. Product photos
3. Different Product Surface Available
Aluminum material surface | Stainless steel material surface | Steel material surface |
Clear Anodized | Polishing | Zinc plating |
Color Anodized | Passivating | Oxide black |
Sandblast Anodized | Sandblasting | Nickel plating |
Chemical Film | Laser engraving | Chrome plating |
Brushing | Electric pulse black | Carburized |
Polishing | Hot galvanized | |
Chroming | Powder Coated |
4. Product introduction
Material | STAINLESS STEEL AISI316, STAINLESS STEEL AISI304, STEEL ELECTRIC GALVANIZED, ZINC ALLOY |
Size | Different size available |
Surface | Polished or zinc plated or nickel or chromed or self-color |
Usage | marine, bag or pet accessories etc. |
MOQ | No MOQ |
Capacity | 100000pcs/Month |
Package | clean poly bags in cartons and then on pallets or as customer requirements |
Sample time | 3 days |
Lead time | 10-30 days based on the order quantity |
Payment Terms | 30% deposit in advance, 70% before shipment |
Payment methods | T/T or Western Union |
QC | 100% inspect before packing, Spot inspect before shipping |
After-sale services | 24 hours reply and free charge exchange goods |
We provide the premium quality products with competitive price for every customer! |
5. Product Pakages&Shipping
Sea line, Express, Train line, trucks and airlines are all available!
6. Company Introduction&Production Introduction
a.Factory production room
b.Production Line
c. Product Inspection Machine&Tools
d. Storeroom&Contain Filling
7. FAQ
Do you accept customized products? Yes, We are acceptable for customized product and also offer design service for free. |
Will you charge the mould fee? We only charge the mould fee when a new mould is needed, but if your order quantity is big enough, we will refund the mould fee after the order. |
What about the terms of payment? T/T, L/C, Western Union, Visa and Wire transfer etc. |
What about your product MOQ? It depends on the product size, normally from 10 - 100 pieces |
What is the delivery time? Normally It takes 3 days for samples if we have the products in stock. For bulk order, it takes 10-30 days according to product size and quantity! |
For more detailed, please feel free to contact us. |
