Galvanized Steel Wire Rope 34×7 Steel Wire Rope
1.1 Steel wire rope data
34×7+FC; 34×7+IWS
STAINLESS STEEL AISI316
STAINLESS STEEL AISI304
CARBON STEEL
SURFACE: GALVANIZED OR UNGALVANIZED
Nominal diameter (mm) | Reference weight(kg/100m) | Tensile strength(Mpa) | ||||||||
1570 | 1670 | 1770 | 1870 | |||||||
Minimum breaking force(KN) | ||||||||||
NF | IWR/IWS | FC | IWR/IWS | FC | IWR/IWS | FC | IWR/IWS | FC | IWR/IWS | |
16 | 99.8 | 110 | 124 | 128 | 132 | 136 | 140 | 144 | 147 | 152 |
18 | 126 | 139 | 157 | 162 | 167 | 172 | 177 | 182 | 187 | 193 |
20 | 156 | 172 | 193 | 200 | 206 | 212 | 218 | 225 | 230 | 238 |
22 | 189 | 208 | 234 | 242 | 249 | 257 | 264 | 272 | 279 | 288 |
24 | 225 | 248 | 279 | 288 | 296 | 306 | 314 | 324 | 332 | 343 |
26 | 264 | 291 | 327 | 337 | 348 | 359 | 369 | 380 | 389 | 402 |
28 | 306 | 337 | 379 | 391 | 403 | 416 | 427 | 441 | 452 | 466 |
30 | 351 | 387 | 435 | 449 | 463 | 478 | 491 | 507 | 518 | 535 |
32 | 399 | 440 | 495 | 511 | 527 | 544 | 558 | 576 | 590 | 609 |
34 | 451 | 497 | 559 | 577 | 595 | 614 | 630 | 651 | 666 | 687 |
36 | 505 | 557 | 627 | 647 | 667 | 688 | 707 | 729 | 746 | 771 |
38 | 563 | 621 | 698 | 721 | 743 | 767 | 787 | 813 | 832 | 859 |
40 | 624 | 688 | 774 | 799 | 823 | 850 | 872 | 901 | 922 | 951 |
42 | 688 | 759 | 853 | 881 | 907 | 937 | 962 | 993 | 1020 | 1050 |
44 | 755 | 832 | 936 | 967 | 996 | 1030 | 1060 | 1090 | 1120 | 1150 |
Note: Other diameters and standards available on demand (ASTM/BS/EN/DIN/ISO/JIS G/KSD/GB).

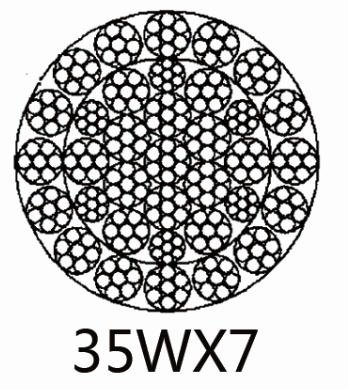

1.2 Non-rotating Steel Wire Rope with Many Layers
35W×7
STAINLESS STEEL AISI316
STAINLESS STEEL AISI304
CARBON STEEL
SURFACE: GALVANIZED OR UNGALVANIZED
Nominal diameter (mm) | Reference weight (kg/100m) | Tensile strength(Mpa) | |||||
1570 | 1670 | 1770 | 1870 | 1960 | 2160 | ||
Minimum breaking force(KN) | |||||||
12 | 66.2 | 81.4 | 86.6 | 91.8 | 96.9 | 102 | 112 |
14 | 90.2 | 111 | 118 | 125 | 132 | 138 | 152 |
18 | 149 | 183 | 195 | 206 | 218 | 229 | 252 |
20 | 184 | 226 | 240 | 255 | 269 | 282 | 311 |
22 | 223 | 274 | 291 | 308 | 326 | 342 | 376 |
24 | 265 | 326 | 346 | 367 | 388 | 406 | 448 |
26 | 311 | 382 | 406 | 431 | 455 | 477 | 526 |
28 | 361 | 443 | 471 | 500 | 528 | 553 | 610 |
30 | 414 | 509 | 541 | 573 | 606 | 635 | 700 |
32 | 471 | 579 | 616 | 652 | 689 | 723 | 796 |
34 | 532 | 653 | 695 | 737 | 778 | 816 | 899 |
36 | 596 | 732 | 779 | 826 | 872 | 914 | 1010 |
38 | 664 | 816 | 868 | 920 | 972 | 1020 | 1120 |
40 | 736 | 904 | 962 | 1020 | 1080 | 1130 | 1240 |
42 | 811 | 997 | 1060 | 1120 | 1190 | 1240 | 1370 |
44 | 891 | 1090 | 1160 | 1230 | 1300 | 1370 | 1510 |
46 | 973 | 1200 | 1270 | 1350 | 1420 | 1490 | 1650 |
48 | 1060 | 1300 | 1390 | 1470 | 1550 | 1630 | 1790 |
50 | 1150 | 1410 | 1500 | 1590 | 1680 | 1760 | 1940 |
Note: Other diameters and standards available on demand (ASTM/BS/EN/DIN/ISO/JIS G/KSD/GB).
2. Steel Wire Rope Application Introduction
Application | Name | Construction |
Hoisting to Well | Triangle strand wire rope | 6V×37S; 6V×37; 6V×34; 6V×30; 6V×43; 6V×21 |
Linear contact lay wire rope | 6×19S; 6×19W; 6×25Fi; 6×29Fi; 6×26WS; 6×31WS; 6×36WS; 6×41WS | |
Multi-layer steel wire rope | 18×7; 17×7; 35W×7; 24W×7 | |
6Q×19+6V×21; 6Q×33+6V×21 | ||
Hoisting to Well (Building well) | Multi-layer steel wire rope and irregular strand wire rope | 6Q×33+6V×21; 17×7;18×7; 34×7; 36×7; 6Q×19+6V×21; 4V×39S;4V×48S; 35W×7;24W×7 |
Balanced wire rope to Well | Wire rope | 6×37S;6×36WS; 4V×39S;4V×48S |
Multi-layer steel wire rope | 18×7; 17×7; 34×7; 36×7;35W×7; 24W×7 | |
Hoisting to Inclined Well(Winch) | Triangle strand wire rope | 6V×18; 6V×19 |
Wire rope | 6×7; 6×9W | |
Drilling for oil | Linear contact lay wire rope | 6×19S; 6×19W; 6×25Fi; 6×29Fi; 6×26WS; 6×31WS; 6×36WS; 6×41WS |
Excavator(hoisting of electrical shovel | Linear contact lay wire rope | 6×19S+IWR; 6×19W+IWR; 6×25Fi+IWR; 6×29R+IWR; 6×26WS+IWR; 6×31WS+IWR; 6×36WS+IWR; 6×55SW+IWR; 6×49SW+IWR; 35W×7. |
Crane | Linear contact lay wire rope | 6×19S+IWR; 6×19W+IWR; 6×25R+IWR; 6×41WS |
Heat moving steel machine | Linear contact lay wire rope | 6×19S+IWR; 6×19W+IWR; 6×25R+IWR; 6×29Fi+IWR; 6×31WS+IWR; 6×37S+IWR; 6×36WS+IWR |
Loading and unloading | Linear contact lay wire rope | 6×19W; 6×25Fi; 6×29Fi; 6×31WS; 6×36WS; 6×37S |
Tugboat, net | Wire rope | 6×31WS; 6×36WS; 6×37S |
Mast and crane | Wire rope | 6×7+IWS; 6×19S+IWR |
Rescuing vessel | Wire rope | 6×37S; 6×36WS; 6×41WS; 6×49SWS; 6×31WS; 8×19S; 8×19W |
3. Different Product Surface Available
Aluminum material surface | Stainless steel material surface | Steel material surface |
Clear Anodized | Polishing | Zinc plating |
Color Anodized | Passivating | Oxide black |
Sandblast Anodized | Sandblasting | Nickel plating |
Chemical Film | Laser engraving | Chrome plating |
Brushing | Electric pulse black | Carburized |
Polishing | Hot galvanized | |
Chroming | Powder Coated |
4. Product introduction
Material | STAINLESS STEEL AISI316, STAINLESS STEEL AISI304, STEEL ELECTRIC GALVANIZED, ZINC ALLOY |
Size | Different size available |
Surface | Polished or zinc plated or nickel or chromed or self-color |
Usage | marine, bag or pet accessories etc. |
MOQ | No MOQ |
Capacity | 100000pcs/Month |
Package | clean poly bags in cartons and then on pallets or as customer requirements |
Sample time | 3 days |
Lead time | 10-30 days based on the order quantity |
Payment Terms | 30% deposit in advance, 70% before shipment |
Payment methods | T/T or Western Union |
QC | 100% inspect before packing, Spot inspect before shipping |
After-sale services | 24 hours reply and free charge exchange goods |
We provide the premium quality products with competitive price for every customer! |
5. Product Pakages&Shipping
Sea line, Express, Train line, trucks and airlines are all available!
6.Company Introduction&Production Introduction
a.Factory production room
b.Production Line
c. Product Inspection Machine&Tools
d. Storeroom&Contain Filling
7. FAQ
Do you accept customized products? Yes, We are acceptable for customized product and also offer design service for free. |
Will you charge the mould fee? We only charge the mould fee when a new mould is needed, but if your order quantity is big enough, we will refund the mould fee after the order. |
What about the terms of payment? T/T, L/C, Western Union, Visa and Wire transfer etc. |
What about your product MOQ? It depends on the product size, normally from 10 - 100 pieces |
What is the delivery time? Normally It takes 3 days for samples if we have the products in stock. For bulk order, it takes 10-30 days according to product size and quantity! |
For more detailed, please feel free to contact us. |
