Premium Quality Steel Wire Ropee 17×7 Steel Wire Rope Wholesale
1. Steel wire rope data

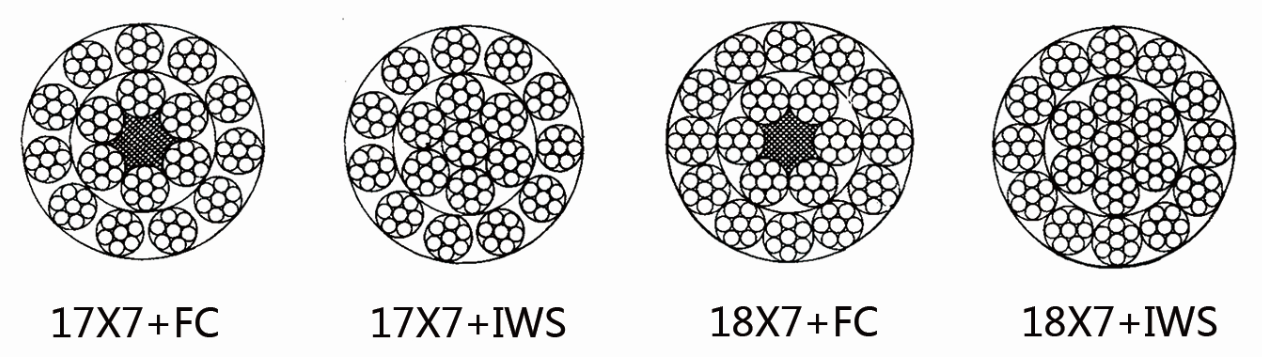

17×7+FC; 17×7+IWS; 18×7+FC; 18×7+IWS
STAINLESS STEEL AISI316
STAINLESS STEEL AISI304
CARBON STEEL
SURFACE: GALVANIZED OR UNGALVANIZED
Nominal diameter (mm) | Reference weight(kg/100m) | Tensile strength(Mpa) | ||||||||||||
1570 | 1670 | 1770 | 1870 | 1960 | 2160 | |||||||||
Minimum breaking force(KN) | ||||||||||||||
NF | IWR/IWS | FC | IWR/IWS | FC | IWR/IWS | FC | IWR/IWS | FC | IWR/IWS | FC | IWR/IWS | FC | IWR/IWS | |
6 | 14 | 15.5 | 17.5 | 18.5 | 18.6 | 19.7 | 19.8 | 20.9 | 20.9 | 22.1 | 21.9 | 23.1 | 24.1 | 25.5 |
7 | 19.1 | 21.1 | 23.8 | 25.2 | 25.4 | 26.8 | 26.9 | 28.4 | 28.4 | 30.1 | 29.8 | 31.5 | 32.8 | 34.7 |
8 | 25 | 27.5 | 31.1 | 33 | 33.1 | 35.1 | 35.1 | 37.2 | 37.1 | 39.3 | 38.9 | 41.1 | 42.9 | 45.3 |
9 | 31.6 | 34.8 | 39.4 | 41.7 | 41.9 | 44.4 | 44.4 | 47 | 47 | 49.7 | 49.2 | 52.1 | 54.2 | 57.4 |
10 | 39 | 43 | 48.7 | 51.5 | 51.8 | 54.8 | 54.9 | 58.1 | 58 | 61.3 | 60.8 | 64.3 | 67 | 70.8 |
11 | 47.2 | 52 | 58.9 | 62.3 | 62.6 | 66.3 | 66.4 | 70.2 | 70.1 | 74.2 | 73.5 | 77.8 | 81 | 85.7 |
12 | 56.2 | 61.9 | 70.1 | 74.2 | 74.5 | 78.9 | 79 | 83.6 | 83.5 | 88.3 | 87.5 | 92.6 | 96.4 | 102 |
13 | 65.9 | 72.7 | 82.3 | 87 | 87.5 | 92.6 | 92.7 | 98.1 | 98 | 104 | 103 | 109 | 113 | 120 |
14 | 76.4 | 84.3 | 95.4 | 101 | 101 | 107 | 108 | 114 | 114 | 120 | 119 | 126 | 131 | 139 |
16 | 100 | 110 | 125 | 132 | 133 | 140 | 140 | 149 | 148 | 157 | 156 | 165 | 171 | 181 |
18 | 126 | 139 | 158 | 167 | 168 | 177 | 178 | 188 | 188 | 199 | 197 | 208 | 217 | 230 |
20 | 156 | 172 | 195 | 206 | 207 | 219 | 219 | 232 | 232 | 245 | 243 | 257 | 268 | 283 |
22 | 189 | 208 | 236 | 249 | 251 | 265 | 266 | 281 | 281 | 297 | 294 | 311 | 324 | 343 |
24 | 225 | 248 | 280 | 297 | 298 | 316 | 316 | 334 | 334 | 353 | 350 | 370 | 386 | 408 |
26 | 264 | 291 | 329 | 348 | 350 | 370 | 371 | 392 | 392 | 415 | 411 | 435 | 453 | 479 |
28 | 306 | 337 | 382 | 404 | 406 | 429 | 430 | 4155 | 454 | 481 | 476 | 504 | 525 | 555 |
30 | 351 | 387 | 438 | 463 | 466 | 493 | 494 | 523 | 522 | 552 | 547 | 579 | 603 | 638 |
32 | 399 | 440 | 498 | 527 | 530 | 561 | 562 | 594 | 594 | 628 | 622 | 658 | 686 | 725 |
34 | 451 | 497 | 563 | 595 | 598 | 633 | 634 | 671 | 670 | 709 | 702 | 743 | 774 | 819 |
36 | 505 | 557 | 631 | 667 | 671 | 710 | 7711 | 752 | 751 | 795 | 787 | 833 | 868 | 918 |
38 | 563 | 621 | 703 | 744 | 748 | 791 | 792 | 838 | 837 | 886 | 877 | 928 | 967 | 1020 |
40 | 624 | 688 | 779 | 824 | 828 | 876 | 878 | 929 | 928 | 981 | 972 | 1030 | 1070 | 1130 |
42 | 688 | 759 | 859 | 908 | 913 | 966 | 968 | 1020 | 1020 | 1080 | 1070 | 1130 | 1180 | 1250 |
44 | 755 | 832 | 942 | 997 | 1000 | 1060 | 1060 | 1120 | 1120 | 1190 | 1180 | 1240 | 1300 | 1370 |
Note: Other diameters and standards available on demand (ASTM/BS/EN/DIN/ISO/JIS G/KSD/GB)
2. Steel Wire Rope Application Introduction
Application | Name | Construction |
Hoisting to Well | Triangle strand wire rope | 6V×37S; 6V×37; 6V×34; 6V×30; 6V×43; 6V×21 |
Linear contact lay wire rope | 6×19S; 6×19W; 6×25Fi; 6×29Fi; 6×26WS; 6×31WS; 6×36WS; 6×41WS | |
Multi-layer steel wire rope | 18×7; 17×7; 35W×7; 24W×7 | |
6Q×19+6V×21; 6Q×33+6V×21 | ||
Hoisting to Well (Building well) | Multi-layer steel wire rope and irregular strand wire rope | 6Q×33+6V×21; 17×7;18×7; 34×7; 36×7; 6Q×19+6V×21; 4V×39S;4V×48S; 35W×7;24W×7 |
Balanced wire rope to Well | Wire rope | 6×37S;6×36WS; 4V×39S;4V×48S |
Multi-layer steel wire rope | 18×7; 17×7; 34×7; 36×7;35W×7; 24W×7 | |
Hoisting to Inclined Well(Winch) | Triangle strand wire rope | 6V×18; 6V×19 |
Wire rope | 6×7; 6×9W | |
Drilling for oil | Linear contact lay wire rope | 6×19S; 6×19W; 6×25Fi; 6×29Fi; 6×26WS; 6×31WS; 6×36WS; 6×41WS |
Excavator(hoisting of electrical shovel | Linear contact lay wire rope | 6×19S+IWR; 6×19W+IWR; 6×25Fi+IWR; 6×29R+IWR; 6×26WS+IWR; 6×31WS+IWR; 6×36WS+IWR; 6×55SW+IWR; 6×49SW+IWR; 35W×7. |
Crane | Linear contact lay wire rope | 6×19S+IWR; 6×19W+IWR; 6×25R+IWR; 6×41WS |
Heat moving steel machine | Linear contact lay wire rope | 6×19S+IWR; 6×19W+IWR; 6×25R+IWR; 6×29Fi+IWR; 6×31WS+IWR; 6×37S+IWR; 6×36WS+IWR |
Loading and unloading | Linear contact lay wire rope | 6×19W; 6×25Fi; 6×29Fi; 6×31WS; 6×36WS; 6×37S |
Tugboat, net | Wire rope | 6×31WS; 6×36WS; 6×37S |
Mast and crane | Wire rope | 6×7+IWS; 6×19S+IWR |
Rescuing vessel | Wire rope | 6×37S; 6×36WS; 6×41WS; 6×49SWS; 6×31WS; 8×19S; 8×19W |
3. Different Product Surface Available
Aluminum material surface | Stainless steel material surface | Steel material surface |
Clear Anodized | Polishing | Zinc plating |
Color Anodized | Passivating | Oxide black |
Sandblast Anodized | Sandblasting | Nickel plating |
Chemical Film | Laser engraving | Chrome plating |
Brushing | Electric pulse black | Carburized |
Polishing | Hot galvanized | |
Chroming | Powder Coated |
4. Product introduction
Material | STAINLESS STEEL AISI316, STAINLESS STEEL AISI304, STEEL ELECTRIC GALVANIZED, ZINC ALLOY |
Size | Different size available |
Surface | Polished or zinc plated or nickel or chromed or self-color |
Usage | marine, bag or pet accessories etc. |
MOQ | No MOQ |
Capacity | 100000pcs/Month |
Package | clean poly bags in cartons and then on pallets or as customer requirements |
Sample time | 3 days |
Lead time | 10-30 days based on the order quantity |
Payment Terms | 30% deposit in advance, 70% before shipment |
Payment methods | T/T or Western Union |
QC | 100% inspect before packing, Spot inspect before shipping |
After-sale services | 24 hours reply and free charge exchange goods |
We provide the premium quality products with competitive price for every customer! |
5. Product Pakages&Shipping
Sea line, Express, Train line, trucks and airlines are all available!
6.Company Introduction&Production Introduction
a.Factory production room
b.Production Line
c. Product Inspection Machine&Tools
d. Storeroom&Contain Filling
7. FAQ
Do you accept customized products? Yes, We are acceptable for customized product and also offer design service for free. |
Will you charge the mould fee? We only charge the mould fee when a new mould is needed, but if your order quantity is big enough, we will refund the mould fee after the order. |
What about the terms of payment? T/T, L/C, Western Union, Visa and Wire transfer etc. |
What about your product MOQ? It depends on the product size, normally from 10 - 100 pieces |
What is the delivery time? Normally It takes 3 days for samples if we have the products in stock. For bulk order, it takes 10-30 days according to product size and quantity! |
For more detailed, please feel free to contact us. |
8.Contact
Mark Wang
International Sales Director
Qingdao Sino Summit Machinery Co., Ltd.
Add: Add: Room 401, Unit 2, Building 9, No. 412 Chongqing Middle Road, Licang District, Qingdao, China
Post Code: 266041
Skype: enjoyfreshair Tel:0086-13573263229
Mob:0086-13573263229 Whatsapp:008613573263229
Wechat: 008613573263229
http://www.sinosummit.cn
http://www.sinosummit.com.cn
