Zinc Plated Steel Wire Rope 6×25FI Line Contacted Wire Rope
1. Steel wire rope data
Line Contacted Wire Rope

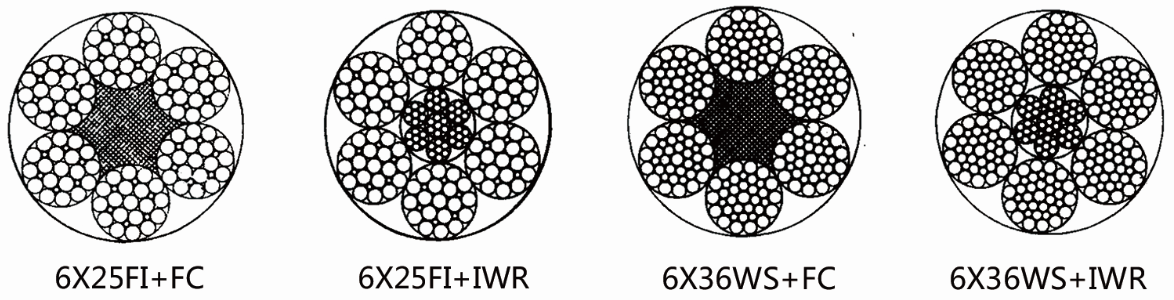

6×25FI+FC; 6×29FI+IWR; 6×36WS+FC; 6×36WS+IWR
STAINLESS STEEL AISI316
STAINLESS STEEL AISI304
CARBON STEEL
SURFACE: GALVANIZED OR UNGALVANIZED
Nominal diameter (mm) | Reference weight(kg/100m) | Tensile strength(Mpa) | |||||||||||||
1570 | 1670 | 1770 | 1870 | 1960 | 2160 | ||||||||||
Minimum breaking force(KN) | |||||||||||||||
NF | SF | IWR/IWS | FC | IWR/IWS | FC | IWR/IWS | FC | IWR/IWS | FC | IWR/IWS | FC | IWR/IWS | FC | IWR/IWS | |
8 | 24.3 | 23.7 | 26.8 | 33.2 | 35.8 | 35.3 | 38 | 37.4 | 40.3 | 39.5 | 42.6 | 41.4 | 44.7 | 45.6 | 49.2 |
10 | 38 | 37.1 | 41.8 | 51.8 | 55.9 | 55.1 | 59.5 | 58.4 | 63 | 61.7 | 66.6 | 64.7 | 69.8 | 71.3 | 76.9 |
12 | 54.7 | 53.4 | 60.2 | 74.6 | 80.5 | 79.4 | 85.6 | 84.1 | 90.7 | 88.9 | 95.9 | 93.1 | 100 | 103 | 111 |
13 | 64.2 | 62.7 | 70.6 | 87.6 | 94.5 | 93.1 | 100 | 98.7 | 106 | 104 | 113 | 109 | 118 | 120 | 130 |
14 | 74.5 | 72.7 | 81.9 | 102 | 110 | 108 | 117 | 114 | 124 | 121 | 130 | 127 | 137 | 140 | 151 |
16 | 97.3 | 95 | 107 | 133 | 143 | 141 | 152 | 150 | 161 | 158 | 170 | 166 | 179 | 182 | 197 |
18 | 123 | 120 | 135 | 168 | 181 | 179 | 193 | 189 | 204 | 200 | 216 | 210 | 226 | 231 | 249 |
20 | 152 | 148 | 167 | 207 | 224 | 220 | 238 | 234 | 252 | 247 | 266 | 259 | 279 | 285 | 308 |
22 | 184 | 180 | 202 | 251 | 271 | 267 | 288 | 283 | 305 | 299 | 322 | 313 | 338 | 345 | 372 |
24 | 219 | 214 | 241 | 298 | 322 | 317 | 342 | 336 | 363 | 355 | 383 | 373 | 402 | 411 | 443 |
26 | 257 | 251 | 283 | 350 | 378 | 373 | 402 | 395 | 426 | 417 | 450 | 437 | 472 | 482 | 520 |
28 | 298 | 291 | 328 | 406 | 438 | 432 | 466 | 458 | 494 | 484 | 522 | 507 | 547 | 559 | 603 |
30 | 342 | 334 | 376 | 466 | 503 | 496 | 535 | 526 | 567 | 555 | 599 | 582 | 628 | 642 | 692 |
32 | 389 | 380 | 428 | 531 | 572 | 564 | 609 | 598 | 645 | 632 | 682 | 662 | 715 | 730 | 787 |
34 | 439 | 429 | 483 | 599 | 646 | 637 | 687 | 675 | 728 | 713 | 770 | 748 | 807 | 824 | 889 |
36 | 492 | 481 | 542 | 671 | 724 | 714 | 770 | 757 | 817 | 800 | 863 | 838 | 904 | 924 | 997 |
38 | 549 | 536 | 604 | 748 | 807 | 796 | 858 | 843 | 910 | 891 | 961 | 934 | 1010 | 1030 | 1110 |
40 | 608 | 594 | 669 | 829 | 894 | 882 | 951 | 935 | 1010 | 987 | 1070 | 1030 | 1120 | 1140 | 1230 |
42 | 670 | 654 | 737 | 914 | 986 | 972 | 1050 | 1030 | 1110 | 1090 | 1170 | 1140 | 1230 | 1260 | 1360 |
44 | 736 | 718 | 809 | 1000 | 1080 | 1070 | 1150 | 1130 | 1220 | 1190 | 1290 | 1250 | 1350 | 1380 | 1490 |
46 | 804 | 785 | 884 | 1100 | 1180 | 1170 | 1260 | 1240 | 1330 | 1310 | 1410 | 1370 | 1480 | 1510 | 1630 |
48 | 876 | 855 | 963 | 1190 | 1290 | 1270 | 1370 | 1350 | 1450 | 1420 | 1530 | 1490 | 1610 | 1640 | 1770 |
50 | 950 | 928 | 1040 | 1300 | 1400 | 1380 | 1490 | 1460 | 1580 | 1540 | 1660 | 1620 | 1740 | 1780 | 1920 |
52 | 1030 | 1000 | 1130 | 1400 | 1510 | 1490 | 1610 | 1580 | 1700 | 1670 | 1800 | 1750 | 1890 | 1930 | 2080 |
54 | 1110 | 1080 | 1220 | 1510 | 1630 | 1610 | 1730 | 1700 | 1840 | 1800 | 1940 | 1890 | 2030 | 2080 | 2240 |
56 | 1190 | 1160 | 1310 | 1620 | 1750 | 1730 | 1860 | 1830 | 1980 | 1940 | 2090 | 2030 | 2190 | 2240 | 2410 |
58 | 1280 | 1250 | 1410 | 1740 | 1880 | 1850 | 2000 | 1960 | 2120 | 2080 | 2240 | 2180 | 2350 | 2400 | 2590 |
60 | 1370 | 1340 | 1500 | 1870 | 2010 | 1980 | 2140 | 2100 | 2270 | 2220 | 2400 | 2330 | 2510 | 2570 | 2770 |
Note: Other diameters and standards available on demand (ASTM/BS/EN/DIN/ISO/JIS G/KSD/GB)
2. Steel Wire Rope Application Introduction
Application | Name | Construction |
Hoisting to Well | Triangle strand wire rope | 6V×37S; 6V×37; 6V×34; 6V×30; 6V×43; 6V×21 |
Linear contact lay wire rope | 6×19S; 6×19W; 6×25Fi; 6×29Fi; 6×26WS; 6×31WS; 6×36WS; 6×41WS | |
Multi-layer steel wire rope | 18×7; 17×7; 35W×7; 24W×7 | |
6Q×19+6V×21; 6Q×33+6V×21 | ||
Hoisting to Well (Building well) | Multi-layer steel wire rope and irregular strand wire rope | 6Q×33+6V×21; 17×7;18×7; 34×7; 36×7; 6Q×19+6V×21; 4V×39S;4V×48S; 35W×7;24W×7 |
Balanced wire rope to Well | Wire rope | 6×37S;6×36WS; 4V×39S;4V×48S |
Multi-layer steel wire rope | 18×7; 17×7; 34×7; 36×7;35W×7; 24W×7 | |
Hoisting to Inclined Well(Winch) | Triangle strand wire rope | 6V×18; 6V×19 |
Wire rope | 6×7; 6×9W | |
Drilling for oil | Linear contact lay wire rope | 6×19S; 6×19W; 6×25Fi; 6×29Fi; 6×26WS; 6×31WS; 6×36WS; 6×41WS |
Excavator(hoisting of electrical shovel | Linear contact lay wire rope | 6×19S+IWR; 6×19W+IWR; 6×25Fi+IWR; 6×29R+IWR; 6×26WS+IWR; 6×31WS+IWR; 6×36WS+IWR; 6×55SW+IWR; 6×49SW+IWR; 35W×7. |
Crane | Linear contact lay wire rope | 6×19S+IWR; 6×19W+IWR; 6×25R+IWR; 6×41WS |
Heat moving steel machine | Linear contact lay wire rope | 6×19S+IWR; 6×19W+IWR; 6×25R+IWR; 6×29Fi+IWR; 6×31WS+IWR; 6×37S+IWR; 6×36WS+IWR |
Loading and unloading | Linear contact lay wire rope | 6×19W; 6×25Fi; 6×29Fi; 6×31WS; 6×36WS; 6×37S |
Tugboat, net | Wire rope | 6×31WS; 6×36WS; 6×37S |
Mast and crane | Wire rope | 6×7+IWS; 6×19S+IWR |
Rescuing vessel | Wire rope | 6×37S; 6×36WS; 6×41WS; 6×49SWS; 6×31WS; 8×19S; 8×19W |
3. Different Product Surface Available
Aluminum material surface | Stainless steel material surface | Steel material surface |
Clear Anodized | Polishing | Zinc plating |
Color Anodized | Passivating | Oxide black |
Sandblast Anodized | Sandblasting | Nickel plating |
Chemical Film | Laser engraving | Chrome plating |
Brushing | Electric pulse black | Carburized |
Polishing | Hot galvanized | |
Chroming | Powder Coated |
4. Product introduction
Material | STAINLESS STEEL AISI316, STAINLESS STEEL AISI304, STEEL ELECTRIC GALVANIZED, ZINC ALLOY |
Size | Different size available |
Surface | Polished or zinc plated or nickel or chromed or self-color |
Usage | marine, bag or pet accessories etc. |
MOQ | No MOQ |
Capacity | 100000pcs/Month |
Package | clean poly bags in cartons and then on pallets or as customer requirements |
Sample time | 3 days |
Lead time | 10-30 days based on the order quantity |
Payment Terms | 30% deposit in advance, 70% before shipment |
Payment methods | T/T or Western Union |
QC | 100% inspect before packing, Spot inspect before shipping |
After-sale services | 24 hours reply and free charge exchange goods |
We provide the premium quality products with competitive price for every customer! |
5. Product Pakages&Shipping
Sea line, Express, Train line, trucks and airlines are all available!
6.Company Introduction&Production Introduction
a.Factory production room
b.Production Line
c. Product Inspection Machine&Tools
d. Storeroom&Contain Filling
7. FAQ
Do you accept customized products? Yes, We are acceptable for customized product and also offer design service for free. |
Will you charge the mould fee? We only charge the mould fee when a new mould is needed, but if your order quantity is big enough, we will refund the mould fee after the order. |
What about the terms of payment? T/T, L/C, Western Union, Visa and Wire transfer etc. |
What about your product MOQ? It depends on the product size, normally from 10 - 100 pieces |
What is the delivery time? Normally It takes 3 days for samples if we have the products in stock. For bulk order, it takes 10-30 days according to product size and quantity! |
For more detailed, please feel free to contact us. |
